Huzhou Winners Armour Co., Ltd. / Deqing, Zhejiang, China
Ballistic fabric by the roll, layer counts published.
UD and woven fabric in UHMWPE and para-aramid, for factories pressing body armor, helmets and hard plates.
Layers, areal density, protection level
The numbers a buyer asks for first
Most fabric suppliers describe ballistic performance in adjectives. Here is the relationship between layer count, areal density and protection level for our soft armor UD fabric. Test reports are available for some of these configurations. Tell us which one you are working to and we will say what we can send.
Scroll the table sideways to see all columns.
- • These figures describe fabric tested to the standards shown. NIJ certification applies to finished torso-worn body armor, not to fabric, so we never describe our fabric as NIJ certified.
- • 13 layers at 3.0 kg/m2, measured V50 480.17 m/s against 9mm FMJ 124 grain, measured by the China Ordnance Equipment Test Center in October 2021. V50 is the velocity at which half the shots are stopped, so it is a comparison figure rather than a protection level.
SB160 against .44 Magnum
Same protection level, fewer layers
The layer count needed for NIJ 0101.06 Level IIIA against .44 Magnum has come down as the fiber and the resin system improved. Fewer layers means a thinner and lighter panel at the same protection level.
Four product lines
UD fabric for soft armor, woven fabric for pressing
Soft Armor UD Fabric
Cross-plied unidirectional fabric for soft vest panels. Published layer counts for NIJ 0101.04 and 0101.06 Level IIIA. Rolls 1.6 m wide, 100 m and up.

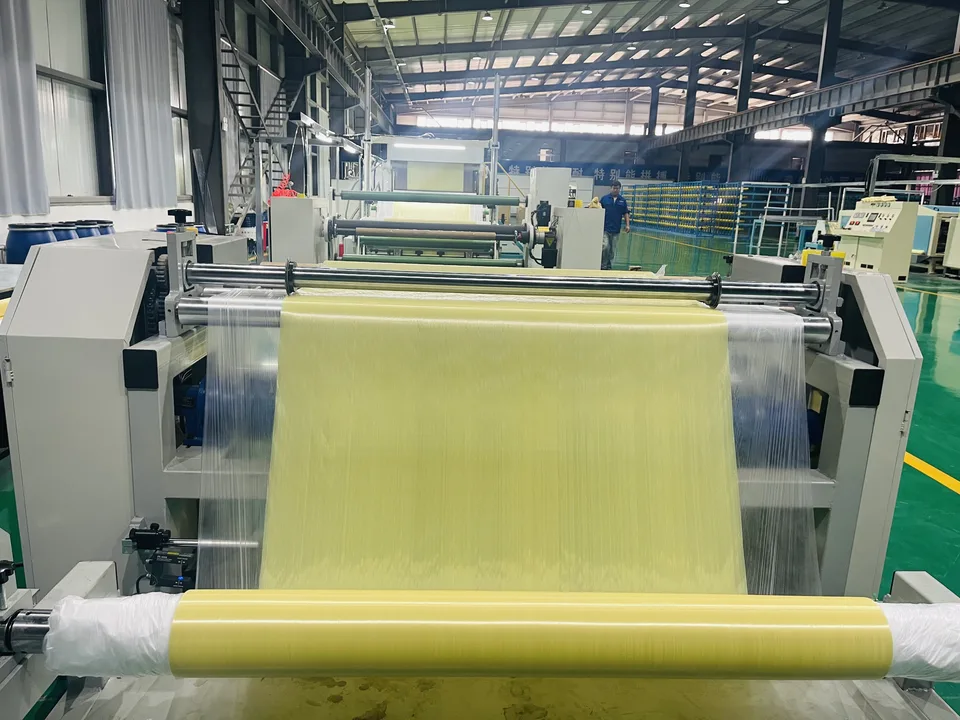

Aramid UD Fabric
Around 200 to 220 g/m2. Ballistic only, ballistic plus anti-stab, or anti-stab only. Areal density figures for NIJ 0101.06 Level IIIA and NIJ 0115.00 stab levels 1 to 3.

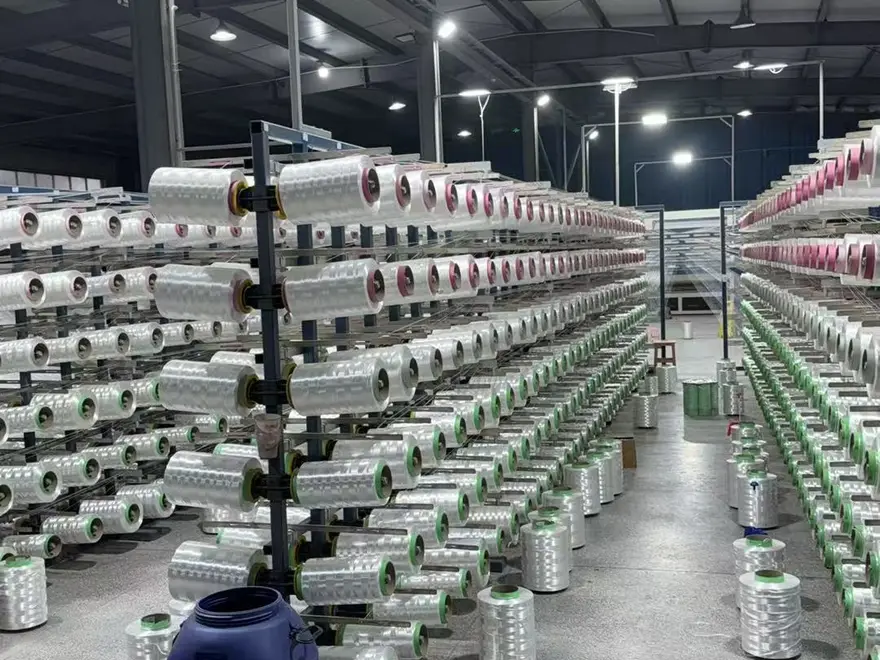

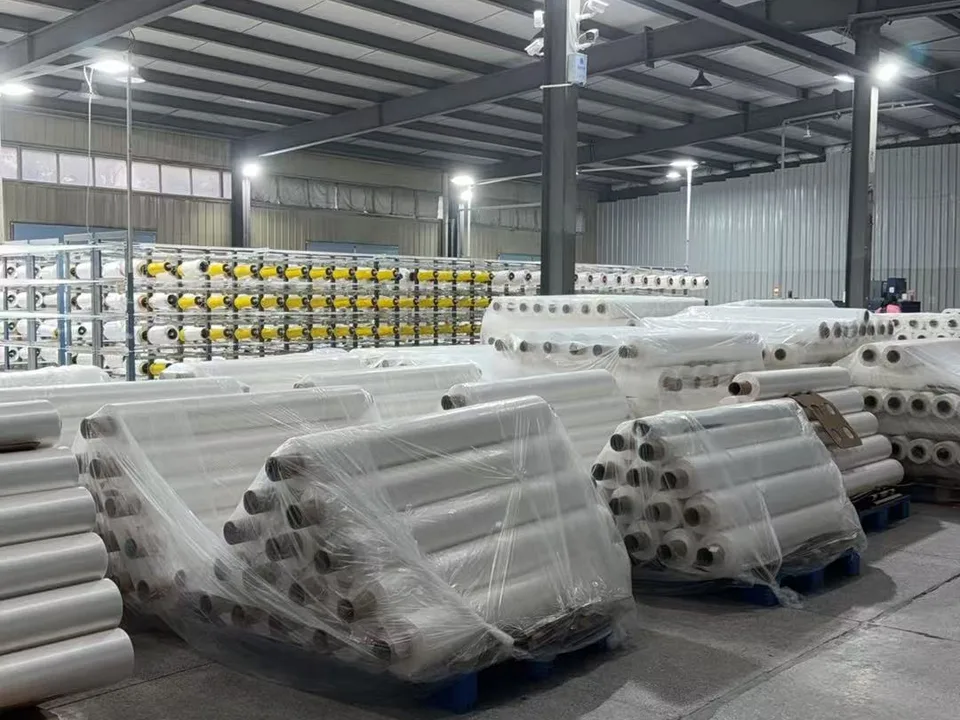

Woven UHMWPE Fabric
Plain weave, 200D to 3000D, 100 to 410 g/m2, 0.21 to 0.88 mm. Uncoated as standard. Used for helmet shells and cut resistant clothing.

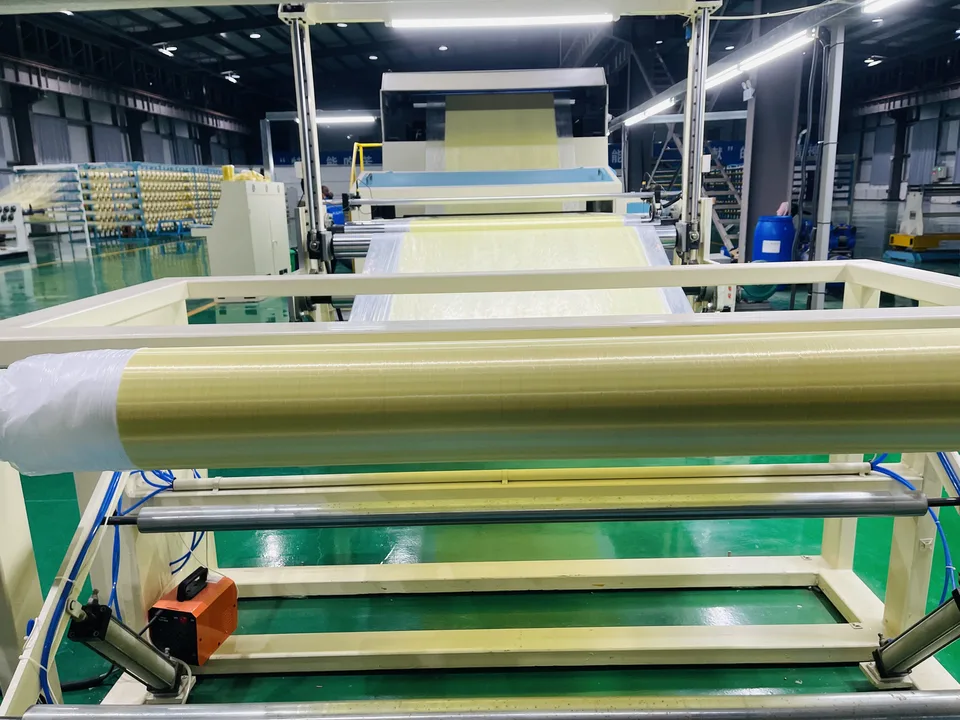

Woven Aramid Fabric
50 to 450 g/m2, 200D to 3000D, 0.08 to 0.7 mm. Plain weave, twill available from PA140 upward. Used for helmet shells, soft armor, hard plates and vehicle panels.
Management systems
Certified, and the scans are on the site

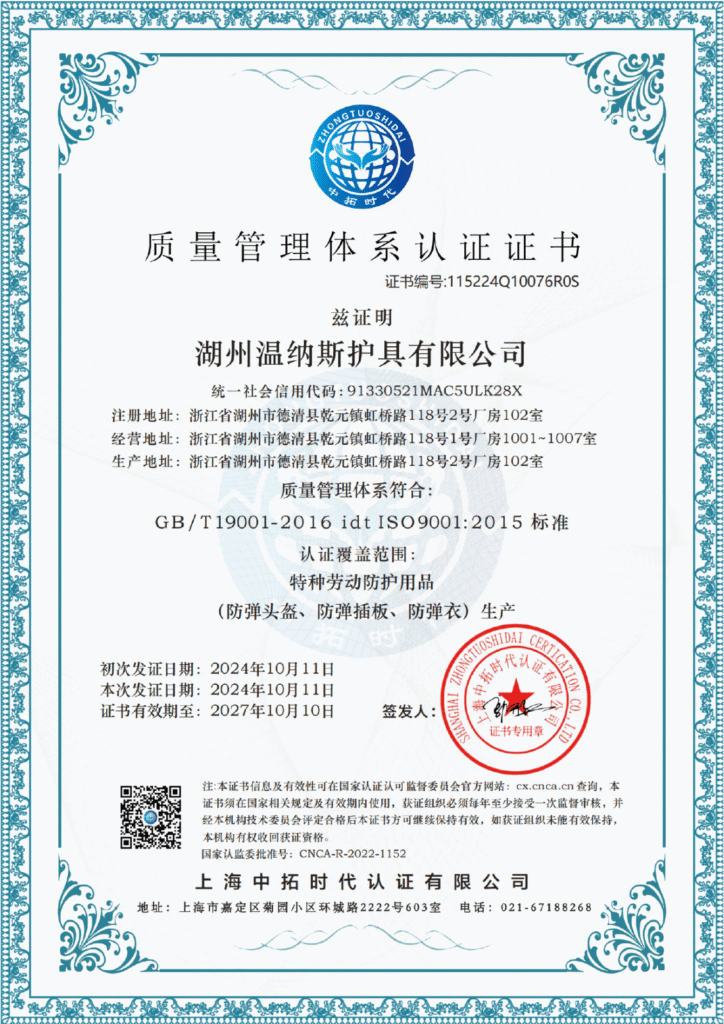

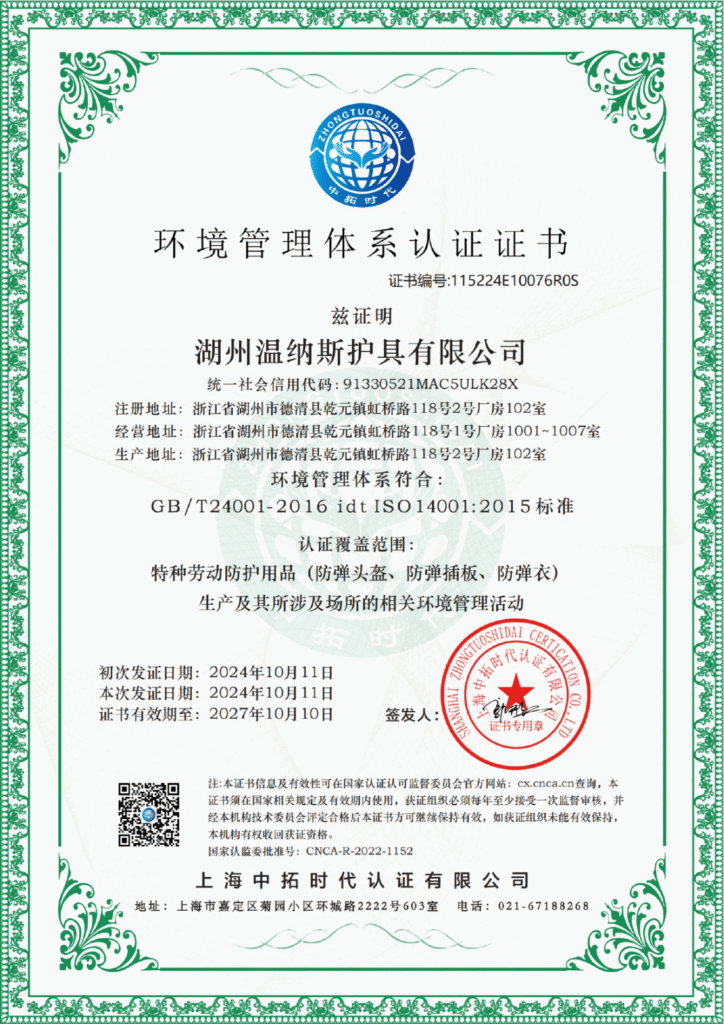

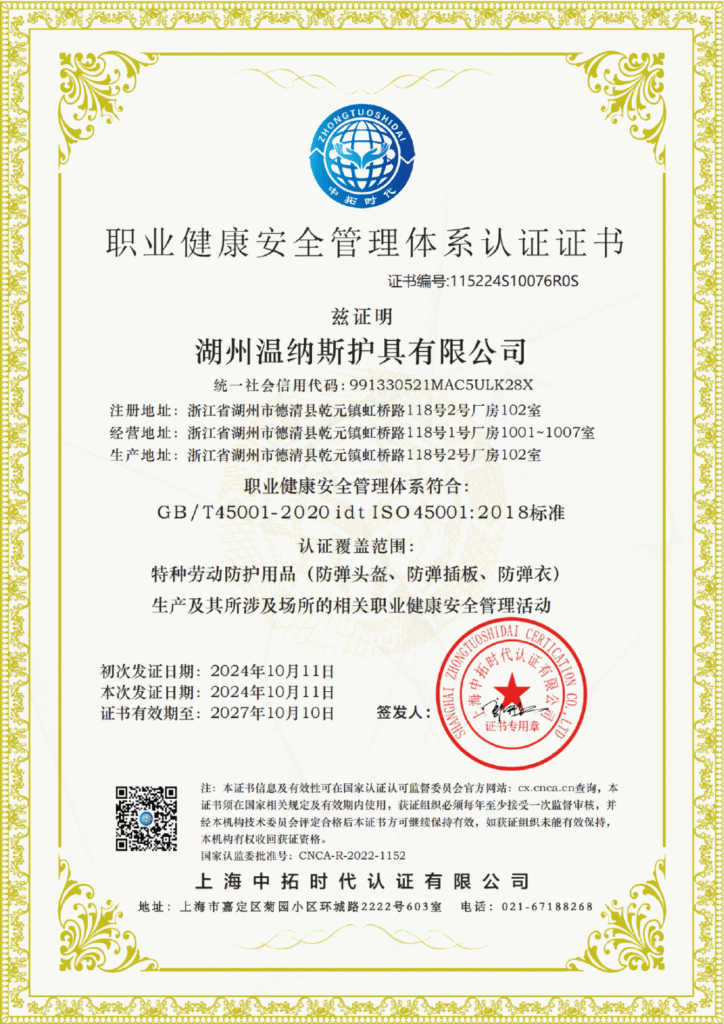

Three ISO certificates issued to HUZHOU WINNERS ARMOUR CO., LTD., all running to October 2027. Open the About page to read any of them at full size.
Test data
Ballistic test reports available on request
Tell us the protection level and the threat you are designing for. We will send the matching report, including shot count, back face signature and the temperature condition it was tested at.
Enquiry
Tell us the level, the threat and the quantity
Send the protection level you are working to, the round it has to stop, the panel or shell you are pressing and the roll quantity you need. Ida answers in English and Chinese, and will say which of our twelve reports matches your lay-up.
