Product lines and specifications
Four lines, sold by the roll
UD fabric goes into soft armor panels. Woven fabric goes into pressed helmet shells and hard plates. UD rolls are 1.6 m wide as standard. Woven rolls are made to order between 1 and 3 m. Custom widths on request. Open a line for its full specification table.

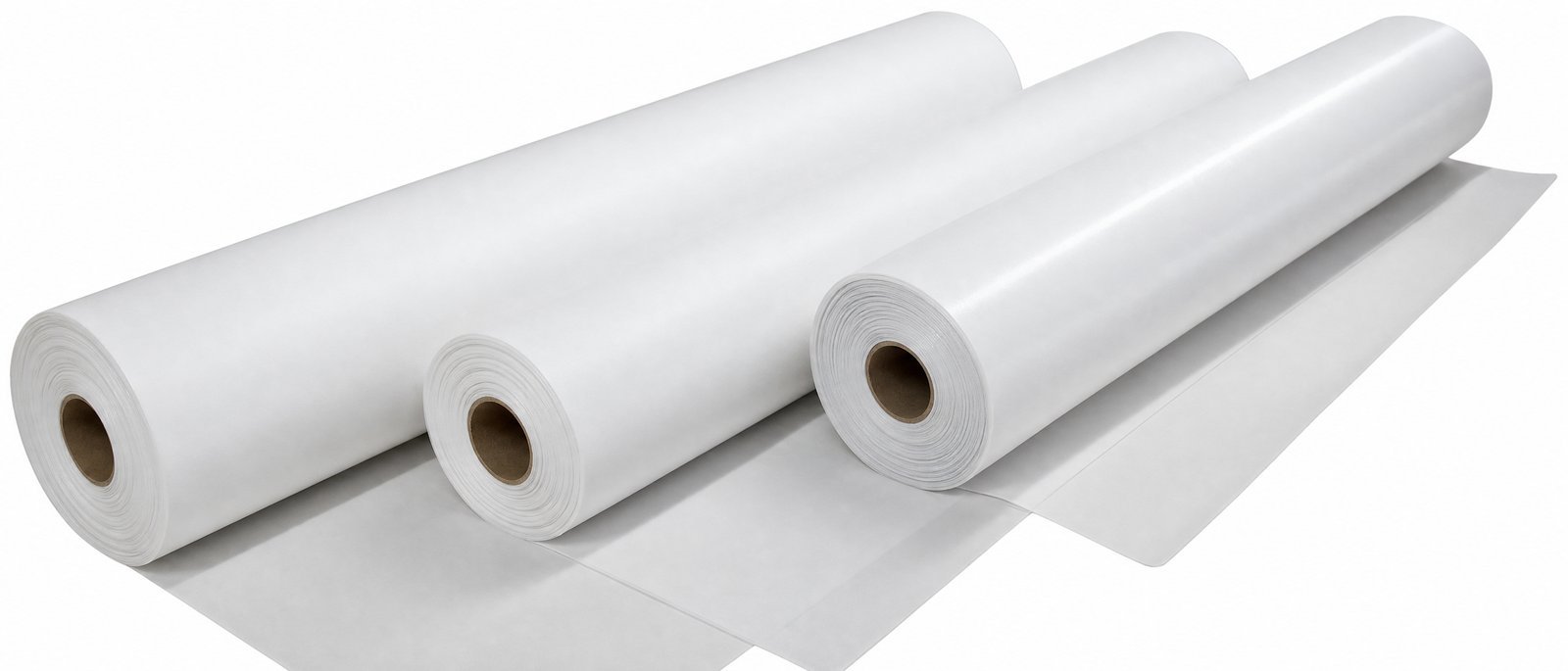

Soft Armor UD Fabric
Cross-plied unidirectional fabric for soft vest panels. Published layer counts for NIJ 0101.04 and 0101.06 Level IIIA. Rolls 1.6 m wide, 100 m and up.

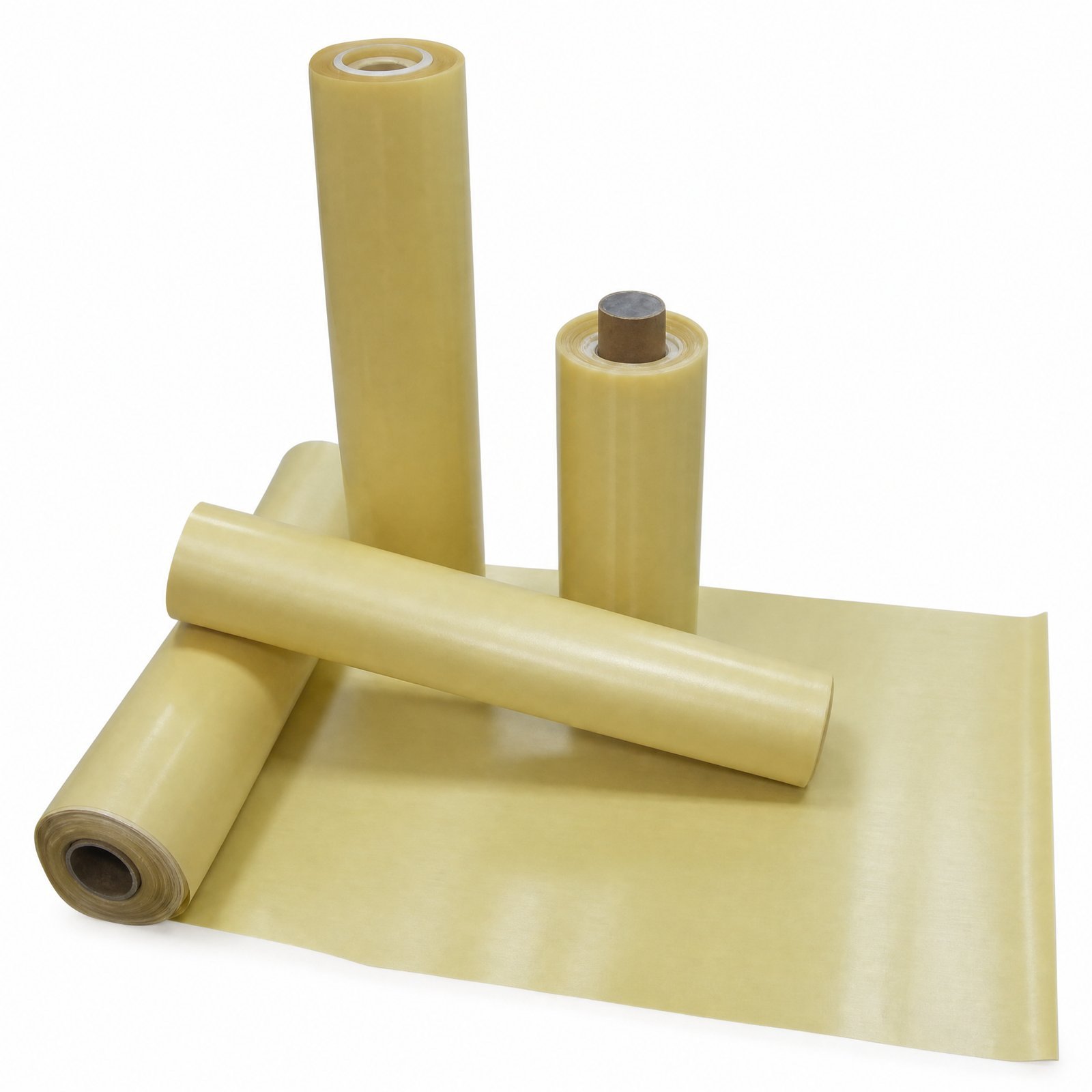

Aramid UD Fabric
Around 200 to 220 g/m2. Ballistic only, ballistic plus anti-stab, or anti-stab only. Areal density figures for NIJ 0101.06 Level IIIA and NIJ 0115.00 stab levels 1 to 3.

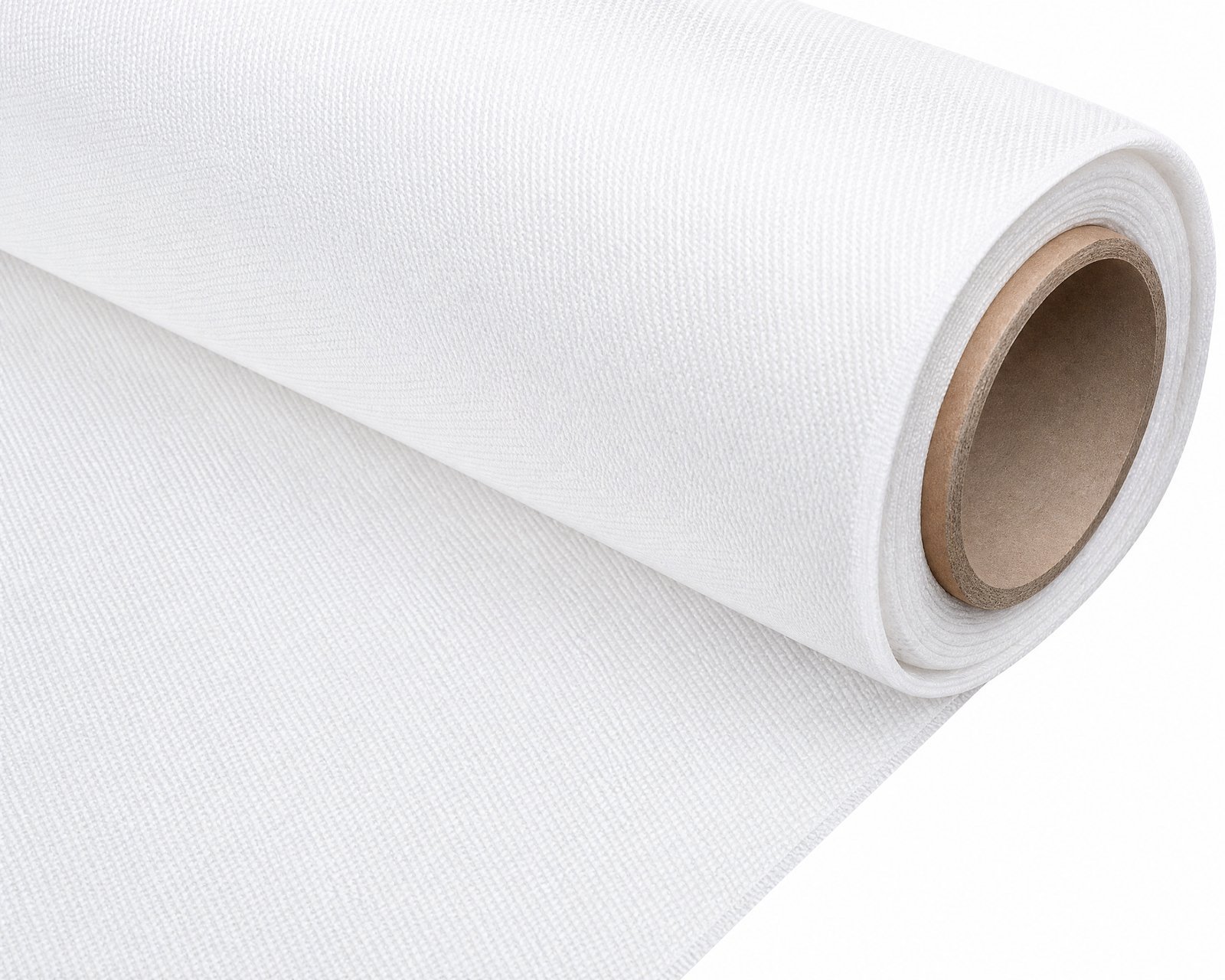

Woven UHMWPE Fabric
Plain weave, 200D to 3000D, 100 to 410 g/m2, 0.21 to 0.88 mm. Uncoated as standard. Used for helmet shells and cut resistant clothing.
Woven Aramid Fabric
50 to 450 g/m2, 200D to 3000D, 0.08 to 0.7 mm. Plain weave, twill available from PA140 upward. Used for helmet shells, soft armor, hard plates and vehicle panels.
Next step
Not sure which line fits your panel?
Send the protection level, the threat and the panel or shell you are pressing. We will point you at the line that fits and say which reports we hold for it.
